Products

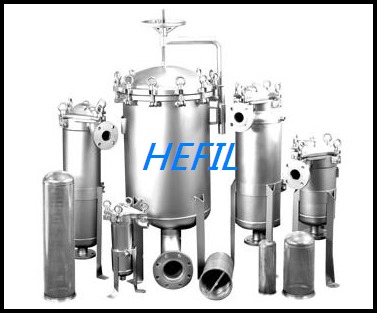

    Wo Yi purification - bag filter

    The Wo benefits bag filter is a new filtration system, within the filter supported by a metal net bag, the liquid from the inlet flow into the outflow after bag filter impurities are intercepted in the bag, bag can continue to use the replacement.

    Wo Yi bag filter system is mainly based on the deep bed filtration, surface filtration, adsorption, filtration, three filtration principle, accurate, efficient,

    Wo beneficial characteristics of the bag filter stability.

    SAM multi-bag filter for large flow of liquid filtration. 24 bag from the bag to complete specifications, import and export of diameter 3-18, the largest single flow :90-1080 cubic meters / hour.

    Can quickly open design, the filter bag replacement is very convenient. Also apply to the use of a long time just to replace the filter bag of the occasion.

    ===Common specifications===
袋式过滤器外形尺寸表
型号 高度(mm) B C D E筒径(mm)
SAM-M2 1454 1300 335 150 400
SAM-M3 1516 1300 335 150 500
SAM-M4 1675 1300 335 150 550
SAM-M5 1675 1300 335 150 600
SAM-M6 1730 1300 335 150 650
SAM-M7 1780 1300 335 150 700
SAM-M8 1790 1400 335 160 750
SAM-M10 1900 1500 450 192 900
SAM-M12 2050 1500 450 192 950
SAM-M14 2140 1500 545 220 1000
SAM-M16 2210 1600 545 220 1050
SAM-M18 2355 1690 650 250 1150
SAM-M20 2425 1745 650 250 1200
SAM-M22 2570 1870 750 272 1250
SAM-M24 2710 1930 850 300 1300
*本表尺寸单位为mm,本表尺寸仅供参考,准确数据以实物为准或联系禾益净化公司。

Tags: Filter products
