You are here：Home >> Products

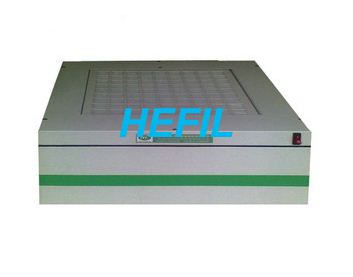

HCU Fan Clean Unit
===Features===
◆Outer casing is made of high-quality cold-rolled steel plate treated
by electrostatic plastic spray or stainless steel sheet
◆Structure of compact, easy to install
◆Low power consumption, low running costs
◆With a high-capacity fan, in long-term use under high static pressure,
but can also maintain a low noise
◆Wide range of applications, fit a variety of clean room from FS209D
Class 10,000 ~ Class 1
===Application===
◆HCU fan clean unit is convenient and flexible. It can be used in a
variety of cleaning devices, such as: portable clean room, clean bench,
clean corridors, clean production line and so on.
- ===Common specifications===
| Model | HCU-60 | HCU-300 | HCU-600 |
| Dimensions (mm) | 240×240×144 | 500×500×200 | 650×650×200 |
| Face Velocity (m/s) | 0.6 | 0.45 | 0.5 |
| Rated Air Flow (m3/h) | 60 | 300 | 600 |
| Noise (dB(A)) | ≤56 | ≤57 | ≤58 |
| Power Supply | AC, 1-Ф220V/50Hz | ||
| Power Dissipation (W) | 30 | 68 | 72 |
| HEPA Efficiency | ≥99.99% @0.3μm | ||
| HEPA Size (mm) | 200×200×50 | 460×460×50 | 460×460×50 |
| Weight (kg) | 4.6 | 23 | 29 |
| Outlet Opening Size (mm) | 180×180 | 420×420 | 570×570 |
HEFIL makes various other models of HCU fan clean unit not listed the above table. Please consult with us if you need.
