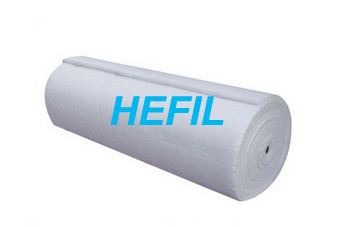

    HGP Non-woven Filter

    ===Features===
    ◆Using polyester, polyamide, nylon, etc. chemical synthetic fibers, in
    accordance with different diameter and density of them, make into a
    conformation of the increase in density by non-woven process, it has
    a property of high permeability, low initial resistance and high dust
    collection rate
    ◆Using different melting point of exterior and interior of the fiber,
    thick and thin fibers was fused together by hot-melt fibers, without
    any chemical adhesives
    ◆The contacts between the fibers are strong. The integration between
    the fibers is closer, and the fiber is not easy to shed.
    ◆Low flammability, fire resistance measures up to Deutsche industry
    norm DIN53438F1
    ◆Can be washed repeatedly
    ◆Can be with galvanized steel or aluminum alloy frame and also
    expanded metal on the exhaust side, to effectively prevent deformation
    of the separator under high-speed airflow


    ===Application===
    ◆Apply to electronic, pharmaceutical, food and other industries as
    prevention and control of pollution, filtration of fresh air, pre-filtering
    prior to medium-efficiency filter, as well as filtration of return air in
    central air conditioning system.

    ===Common specifications===



Model

HGP-100

HGP-200

HGP-300

HGP-400

HGP-500

Common Size

5mmT×2m×50m

10mmT×2m×20m

15mmT×2m×20m

20mmT×2m×20m

25mmT×2m×20m

Material

Polyester

Thickness

5mm

10mm

15mm

20mm

25mm

Norm Velocity

1.0m/s

Initial Pressure Drop

30Pa

40Pa

45Pa

50Pa

58Pa

Final Pressure Drop

147Pa

196Pa

196Pa

196Pa

196Pa

Average Trapping Efficiency

76%

80%

85%

88%

90%

Heat Resistance

100oC

Capacity of Dust Arrestment

450g/m2

600g/m2

520g/m2

460g/m2

400g/m2

HEFIL makes various other models of HGP filter not listed the above table. Please consult with us if you need.
