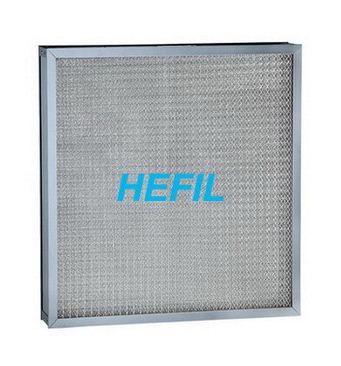

HWM All Metal Washable Filter
===Features===
◆Aluminum frame structure, reducing the frequency of cleaning and
maintenance of the filter
◆Multi-layer corrugated aluminum mesh, low initial resistance, high
dust holding capacity and long service life
◆Light weight and compact, easy to install
◆Can use compressed air or cleaning fluid to wash repeatedly
◆Greatly reduce the risk of fire
◆Good heat dissipation, extend the life of the fan motor
===Application===
◆Suitable as pre-filter in ventilation systems of office buildings,
conference rooms, hospitals, shopping malls, recreation centers,
airports and other huge civil architecture, as well as general factories
and clean rooms.
- ===Common specifications===
Model | Dimensions | Face Velocity (m/s) | Rated Air Flow (m3/h) | Initial Pressure Drop (Pa) |
W×L×D (mm) | ||||
HWM-20×10×2 | 492×238×46 | 2.5 | 1050 | 15 |
HWM-20×16×2 | 492×390×46 | 1720 | ||
HWM-20×20×2 | 492×492×46 | 2170 | ||
HWM-24×24×2 | 594×594×46 | 3170 | ||
HWM-25×16×2 | 619×390×46 | 2170 | ||
HWM-25×20×2 | 619×492×46 | 2740 |
HEFIL makes various other models of HWM filter not listed the above table. Please consult with us if you need.
