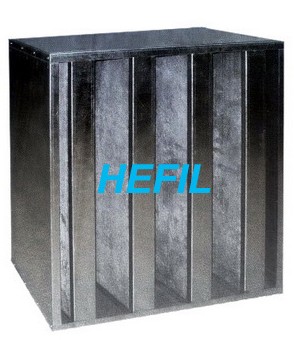

Activated Charcoal Filter Box
===Features===◆Using activated charcoal particles with a special chemical formula
treatment
◆Reliable performance with high adsorption capacity and removal
efficiency
◆Easy installation and maintenance
◆Frame can be made of galvanized steel sheet or stainless steel sheet
===Application===
◆Suitable for industrial ventilation systems, eliminate the odor
(smell) and harmful gases in air
◆A variety of special activated charcoal materials can be provided
according to the actual needs, such as elimination of acid gas,
alkaline gas, formaldehyde, mercury vapor as well as radioactive gases
- ===Common specifications===
| Model | Dimensions | Removal Efficiency (%) | Charcoal Content (kg) | Pressure Drop (Pa) @ Air Flow (m3/h) |
| W×H×D (mm) | ||||
| HACB-242412-4V | 610×610×292 | 95 | 18 | 140@3600 |
| HACB-241212-4V | 610×305×292 | 8.5 | 150@1800 | |
| HACB-122412-2V | 305×610×292 | 8.5 | 150@1800 | |
| HACB-121212-2V | 305×305×292 | 4.2 | 160@900 |
HEFIL makes various other models of HACB filter not listed the above table. Please consult with us if you need.
