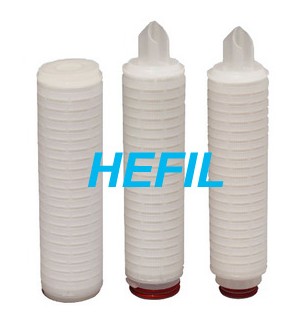

    HCPS Membranes folded filter

    === Performance characteristics ===
    ◆ imports of poly (ether sulfone) microporous membrane and imported non-woven or mesh support layer folding
    ◆ the outer tube of the filter, the core columns, end caps are polypropylene, part sealed by hot welding technology molding, no adhesives, no pollution, no media off
    ◆ hydrophilic membrane pore size distribution, the flux
    ◆ has a wide range of chemical compatibility and good acid and alkali resistance, temperature resistance, especially suitable for high temperature liquid filtration
    ◆ the performance meets the requirements of the FDA
    ◆ Each filter integrity testing, and by the high purity water rinse


    === Should use ===
    ◆ terminal filtration of pharmaceutical and biological products terminal filter drinking water, beverage, ultrapure water, alcohol and other chemical raw materials filter

    ===Common specifications===

===主要技术参数===

过滤精度

0.1μm, 0.22μm, 0.45μm

水流量-压力差特性 (10"滤芯)

滤芯长度

10", 20", 30", 40"

滤芯直径

Φ69mm

过滤面积/10"长度

0.6m2

最高工作温度

85oC (压差0.2MPa)

最高工作压力

1.6MPa@25oC

正向耐压差

0.4MPa@25oC

反向耐压差

0.3MPa@25oC

蒸汽灭菌

121oC, 每次30min

接口型式

222插入式, 226卡入式

O形密封圈材料

氟橡胶, 硅橡胶, 乙丙橡胶

1、若遇规格、结构变更,以本公司提供的最新数据为准

2、本公司接受非表上规格过滤器产品的订货
