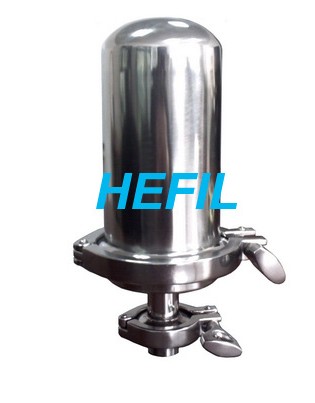

HFC breathing filter
=== Applicable range ===
HFC series of breathing filter is applied to installed in various types of tank, pure water tanks, sterile oven loophole to prevent the suction tank level changes and row air, or sterile oven gas emissions suction by the bacteria or dust pollution in the atmosphere.
- ===Common specifications===
| 壳体制造材料 | 不锈钢304, 316, 316L | ||
| 滤芯接口型式 | 226 (卡入式) | ||
| 管路连接方式 | 卡箍 | 提供外接接头 | |
| 法兰 | HG20593-1997; PN1.0~1.6MPa | ||
| 螺纹 | 英制管螺纹 | ||
| 工作压力 | 0.3MPa, 0.8MPa | ||
| 过滤精度 | 0.01μm, 0.1μm, 0.22μm, 0.45μm | ||
| 过滤效率 | 99.999% | ||
|
|
| ||
===规格型号和外形尺寸===
| 额定通气量(m3/h) | 型号 | 接管 | 外形尺寸 (mm) | 参考重量(kg) | ||||
| 公称通径DN | 管径d (mm) | 连接型式 | 颈高h | 壳体外径D | 总高H | |||
| 65 | HFC-0105F-25 | 25 | Φ32×2.5 | 法兰25-1.0 | 50 | Φ102 | 220 | 2.2 |
| HFC-0105C-25 | 卡箍DN25 | 1.5 | ||||||
| HFC-0105S-25 | 外螺纹G1" | 1.2 | ||||||
| 130 | HFC-0110F-40 | 40 | Φ45×2.5 | 法兰40-1.0 | 350 | 3.7 | ||
| HFC-0110C-40 | 卡箍DN40 | 2.5 | ||||||
| HFC-0110S-40 | 外螺纹G1?" | 1.9 | ||||||
| 400 | HFC-0310F-50 | 50 | Φ57×3 | 法兰50-1.0 | 80 | Φ200 | 465 | 14.3 |
| HFC-0310C-50 | 卡箍DN50 | 13.0 | ||||||
| HFC-0310S-50 | 外螺纹G2" | 12.3 | ||||||
A case of specifications, structural change, the latest data provided by the Company shall prevail
Two companies to accept the order of the non-sheet specifications of filter products
