Products

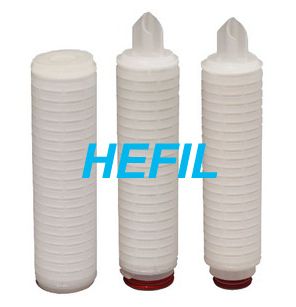

    PTFE Membrane Media Filter

    === Performance characteristics ===
    ◆ Adopt the imported PTFE microporous membrane and imported non-woven or mesh support layer folded
    ◆ filter outside the tube, the core columns, the end caps are enhanced polypropylene material, part of the seal using advanced welding technology forming, without any adhesive
    ◆ strong hydrophobic membrane has a wet or dry conditions can ensure absolute sterilization for gas filtration, 100% retention 0 01μm or more bacteria, the phage
    ◆ has excellent chemical resistance and thermal stability, high temperature resistance, impact resistance, corrosion-resistant
    ◆ flow, pressure, long life
    ◆ Each filter integrity testing
    === Should use ===
    ◆ compressed air, biological reactors, storage tanks, mixing tank, intake and exhaust sterilization filter, the electronics industry purity gases and organic solvents, sterilization filter



    ===Common specifications===

===主要技术参数===

过滤精度

气体

0.01μm, 0.05μm

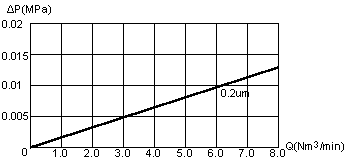

空气流量-压力差特性 (10"滤芯)

液体

0.1μm, 0.22μm, 0.45μm

滤芯长度

5", 10", 20", 30", 40"

滤芯直径

Φ69mm

过滤面积/10"长度

0.6m2

最高工作温度

90oC (压差0.2MPa)

最高工作压力

4.0MPa@25oC

正向耐压差

0.4MPa@25oC

反向耐压差

0.3MPa@25oC

蒸汽灭菌

125oC, 每次30min

接口型式

226卡入式

O形密封圈材料

氟橡胶, 硅橡胶

1、若遇规格、结构变更,以本公司提供的最新数据为准

2、本公司接受非表上规格过滤器产品的订货
