Products

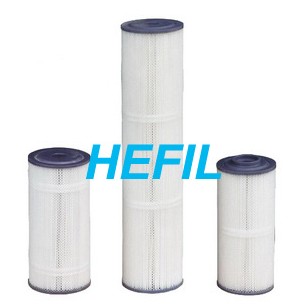

    Big fat shaped pleated filter

    === Performance characteristics ===

    First, the polyester fiber filter material folded filter material, the core columns, cover the overall integration and good sealing
    Second, the filtration area, a wide range of filtration precision, low differential pressure, flux and pollutant carrying a large amount of long service life
    Third, the widely used, cheap

    === Should use ===

    The HCDP big fat shaped pleated filter chemical agents, the plating liquid filtration, solvent and pharmaceutical pre-filter, industrial water purification, swimming pool filtration

    ===Common specifications===

=== The main technical parameters ===

过滤精度

5μm, 10μm, 20μm, 30μm, 50μm

水流量-压力差特性 (10"滤芯)

滤芯长度

10", 20", 30"

滤芯外径

Φ115mm

滤芯内径

Φ28mm

过滤面积/10"长度

1.9m2

最高工作温度

45oC (压差0.12MPa)

最高工作压力

1.0MPa@25oC

正向耐压差

0.4MPa@25oC

反向耐压差

0.05MPa@25oC

接口型式

平面压入式

端盖材料

聚氨酯

A case of specifications, structural change, the latest data provided by the Company shall prevail

Two companies to accept the order of the non-sheet specifications of filter products
