Products

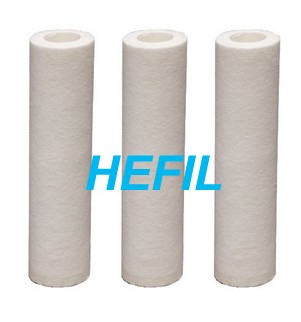

    HCMS meltblown filter

    === Performance characteristics ===

    Polypropylene as raw materials, continuous polypropylene meltblown process long fiber wound on the
    Second, the high filtration precision, flow, uniform structure, pollutant carrying capacity, long life
    Third, there is a good chemical compatibility, without any additives, fiber is not easy to fall off
    Fourth, widely used, cheap

    === Should use ===

    The HCMS meltblown filter pre-filter for a variety of pure water systems, security filters, food, drinks, drinking water filtration, solvent, acid, alkali filters, boilers, water filtration, oil filter

    ===Common specifications===

===主要技术参数===

过滤精度

0.5μm, 1μm, 3μm, 5μm, 10μm, 20μm

水流量-压力差特性 (10"滤芯)

滤芯长度

10", 20", 30", 40"

滤芯外径

Φ65mm

滤芯内径

Φ28mm

最高工作温度

60oC (压差0.12MPa)

最高工作压力

1.6MPa@25oC

正向耐压差

0.4MPa@25oC

反向耐压差

0.1MPa@25oC

接口型式

平面压入式 (可加接其他接口)

可加端盖材料

聚丙烯

A case of specifications, structural change, the latest data provided by the Company shall prevail

Two companies to accept the order of the non-sheet specifications of filter products
