Products

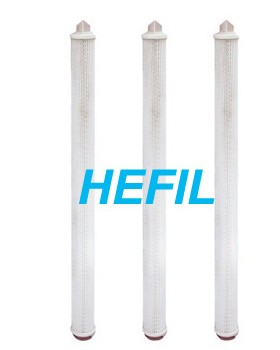

    The HCPT polyester folded filter

    === Performance characteristics ===

    Using a single or multi-layer polyester fiber filter material folded filter material, the core columns, cover the overall integration and good sealing
    Filter area, a wide range of filtration precision, low differential pressure, flux and pollutant carrying a large amount of long service life
    Three widely used, cheap

    === Should use ===

    HCPT polyester folding filter chemical agents, the plating liquid filtration, solvent and pharmaceutical pre-filtration, filtration of food and beverage, industrial water purification

    ===Common specifications===

===主要技术参数===

过滤精度

双层

0.22μm, 0.45μm, 1μm

水流量-压力差特性 (10"滤芯)

单层

5μm, 10μm, 20μm, 30μm, 50μm

滤芯长度

10", 20", 30", 40"

滤芯直径

Φ69mm

过滤面积/10"长度

0.5m2

最高工作温度

45oC (压差0.12MPa)

最高工作压力

1.0MPa@25oC

正向耐压差

0.4MPa@25oC

反向耐压差

0.05MPa@25oC

接口型式

222插入式, 226卡入式, 平面压入式

O形密封圈材料

硅橡胶, 氟橡胶, 乙丙橡胶

A case of specifications, structural change, the latest data provided by the Company shall prevail

Two companies to accept the order of the non-sheet specifications of filter products
