Products

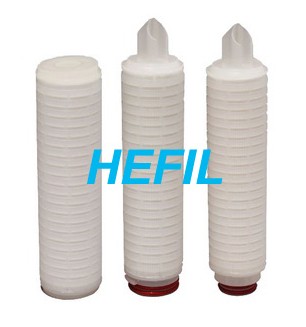

    The HCPP polypropylene folded filter

    === Performance characteristics ===
    1 imported and domestic fine polypropylene fiber filter materials and imported non-woven or mesh support layer folding
    Two polypropylene structure, thermal welding technology sealed molding, no adhesive, non-polluting, non-fiber shedding
    3 Pore size distribution uniformity, a wide range of filtration precision, low differential pressure, flux and pollutant carrying a large amount of long service life
    4 has a wide range of chemical compatibility, widely used, cheap
    Inspection of each filter pore size, and high purity water rinse

    === Should use ===

    Organic solvent filtration ◆ HCPP polypropylene folded filter the pharmaceutical industry a variety of liquid filtration in the food industry, drinking water, wine, fruit juice and other filters, chemical industry, electronics industry highly pure water pre-filtration, oil field water filter

    ===Common specifications===

===主要技术参数===

过滤精度

0.05μm, 0.1μm, 0.2μm, 0.5μm, 1μm, 3μm, 5μm, 10μm, 20μm, 30μm, 50μm

水流量-压力差特性 (10"滤芯)

滤芯长度

5", 10", 20", 30", 40"

滤芯直径

Φ69mm

过滤面积/10"长度

0.6m2

最高工作温度

80oC (压差0.12MPa)

最高工作压力

1.6MPa@25oC

正向耐压差

0.4MPa@25oC

反向耐压差

0.3MPa@25oC

蒸汽灭菌

121oC, 每次30min

接口型式

222插入式, 226卡入式, 平面压入式

O形密封圈材料

硅橡胶, 氟橡胶, 乙丙橡胶

1、若遇规格、结构变更,以本公司提供的最新数据为准

2、本公司接受非表上规格过滤器产品的订货。
