Products

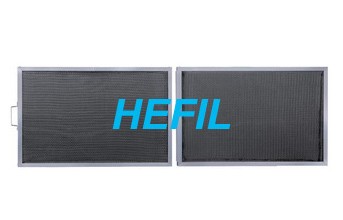

    HWN wash nylon filter

    === Performance characteristics ===

    ◆ imported polyamide monofilament fiber woven filter media, wear resistance, high strength, long life, the effect of combined use of
    ◆ precipitator rate, low initial resistance, dustproof performance can be repeated washing
    ◆ Ultra-thin-shaped aluminum profile frame, can be made with a handle interconnection group type, easy to replace security


    === Should use ===
    ◆ offices, meeting rooms, hospitals, shopping malls, stadiums, airports and other large-scale civil construction ventilation system; factory centralized ventilation and air conditioning system; clean room to focus on primary filter in the ventilation air conditioning system

    ===Common specifications===

===常用规格===



外形尺寸

额定风量

(m3/h)

初始压降

(Pa)

过滤面积

(m2)

×长×厚(mm)

HWN-500×500×15

500×500×15

4500

10

0.25

HWN-500×1000/2×15

500×1000×15

9000

0.5

HWN-500×1500/3×15

500×1500×15

13500

0.75

A case of specifications, structural change, the latest data provided by the Company shall prevail

Two companies to accept the non-sheet specifications filter order

Tags: Filter device
