Products

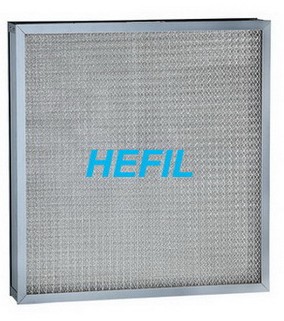

    HWM can wash all metal filter

    === Performance characteristics ===
    ◆ aluminum frame structure, reducing the frequency of filter cleaning and maintenance
    ◆ layers of corrugated aluminum mesh, initial low resistance, high dust holding capacity, long life
    ◆ Light weight, compact, easy to install
    ◆ You can use compressed air to purge or cleaning fluid, a number of cleaning, re-use
    ◆ greatly reduce the risk of causing fire.
    ◆ easy cooling performance may be extended the life of the fan motor


    === Should use ===
    ◆ offices, meeting rooms, hospitals, shopping malls, stadiums, airports and other large-scale civil construction ventilation system; factory centralized ventilation and air conditioning system; clean room to focus on primary filter in the ventilation air conditioning system

    ===Common specifications===

===常用规格===



外形尺寸

额定风速

(m/s)

额定风量

(m3/h)

初始压降

(Pa)

×长×厚(mm)

HWM-20×10×2

492×238×46

2.5

1050

15

HWM-20×16×2

492×390×46

1720

HWM-20×20×2

492×492×46

2170

HWM-24×24×2

594×594×46

3170

HWM-25×16×2

619×390×46

2170

HWM-25×20×2

619×492×46

2740

A case of specifications, structural change, the latest data provided by the Company shall prevail

Two companies to accept the non-sheet specifications filter order

Tags: Filter device
