Products

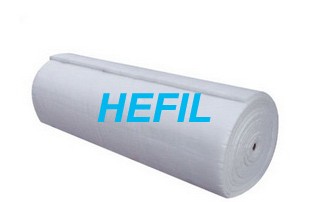

    HGP non-woven filter



    === Performance characteristics ===
    ◆ using chemical synthetic fibers of polyester, polyamide, nylon, etc., according to the thickness and density of fiber diameter, a non-fabric, multi-directional gradient sex rolling pin into the legal system, with high permeability, low pressure loss, characteristics of the high dust
    ◆ Use different inside and outside the low melting point fiber made solid contact between the fibers, are linked closely together, not falling
    ◆ Do not add any chemical adhesive, hot melt fiber thickness of the fiber mix stick together, the fire source is not easy retardant, flame retardant point in line with German industrial standard DIN53438F1
    ◆ can be cleaned and reused
    ◆ installation of a galvanized steel frame or aluminum frame, but also to install metal back net, which can effectively support the filter to withstand winds of not easily deformed


    === Should use ===
    ◆ applicable to the electronic, pharmaceutical, food and a variety of industrial pollution prevention, new air filter efficiency filter in the pre-filter and air-conditioning system return air filter

    ===Common specifications===

===常用规格及性能参数===



HGP-100

HGP-200

HGP-300

HGP-400

HGP-500

材料尺寸

5mmT×2m×50m

10mmT×2m×20m

15mmT×2m×20m

20mmT×2m×20m

25mmT×2m×20m







5mm

10mm

15mm

20mm

25mm

标准风速

1.0m/s

初期压损

30Pa

40Pa

45Pa

50Pa

58Pa

终期压损

147Pa

196Pa

196Pa

196Pa

196Pa

平均捕集效率

76%

80%

85%

88%

90%



100oC

捕尘量

450g/m2

600g/m2

520g/m2

460g/m2

400g/m2

1、若遇规格、结构变更,以本公司提供的最新数据为准

2、本公司接受非表上规格过滤网产品的订货



Tags: Filter device
